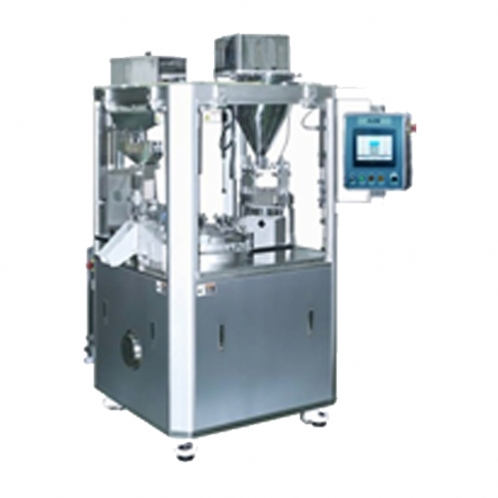

KSF-100

SOLID DOSE > Hard capsule filler

Hard Capsule Filler

Powder Tamping

Air powdered lift-up and down of powder, Hopper : control from Touch screen.
New design of tamping plunger holder provides easier removal and set-up of tamping plungers and also easier control of inserting depth.
Rigid and precise construction does not allow any inflow of foreign particles.

Turn -Table

High precision of capsule segment and the holders with excellent finish.
Extremely easy removal and set-up of segments.
Level-up of turret fabrication toward convenience ensures high stability and easy maintenance.

KSF-150

◆ Capsule Closing & Ejection & Cleaning
- Tool-less dismantling & set-up.
- Further convenience on cleaning and change-over.

◆ Operation
- Well organized elements on touch screen reads easy operation.
- Interactive safety devices with visible diagnosis of trouble.

◆ Function Chart

     ① 1st’ Capsule sorting & separation.
     ② 2nd’ Capsule sorting & separation.
     ③ Pellet & Tablet filling.
     ④ Powder filling.
     ⑤ Pellet & Tablet filling.

⑥ Faulty capsule ejection.
⑦ Capsule closing.
⑧ Discharge of field capsule.
⑨ Cleaning of segment.

◆ Size Change Parts

◆ Optional items
     - Automatic powder loader
     - Automatic capsule loader
     - Capsule polishing machine
     - Dust Collector

Specification

	KSF-25	KSF-50	KSF-100	KSF-150
Capsule Size #	00,0,1,2,3,4,(Option 000, 5)
Max. Production Quantity(Powder)	25,000	50,000	110,000	150,000
Max. Production Quantity(Pellet)	18,000	36,000	85,000	120,000
Max. RPM of Turn Table	140	140	130	130
Power Consumption	4kw	5kw	6kw	7kw
Dimension(W x D x H)(mm)	900x1,100x1,700	1,200x1,470x1,850	1,650x1,650x2,030	1,750x1,750x2,100
Net Weight(Approx.)	950kg	1,350kg	1,950kg	2,500kg
