OPTIONS-KSPL(PN)- 50

SOLID DOSE > Fluid bed processor

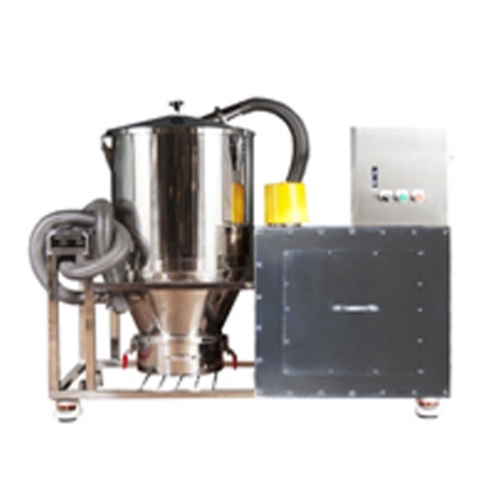

Pneumatic Conveyor System

Feature

KSPL(PN)-50  is a device to convey powder, granule into the double cone mixer and v-mixer  within the shortest time period by using pneumatic power.

Feature
Model KSPL(PN)-50
Convey Ability 50 Liter/min
Air Volume 9M3/min
Constant Pressure 3500 mmAq
Hose Size (India) ø51mm
Filter Area of 2nd Filtering system 1.2M3
Electric power consumption 5.5kw
Electricity 220V/50Hz/3P
1st Filtering system (Dimension) 400x400x1150 mm
2nd Filtering system (Dimension) 1183x570x1265 mm
