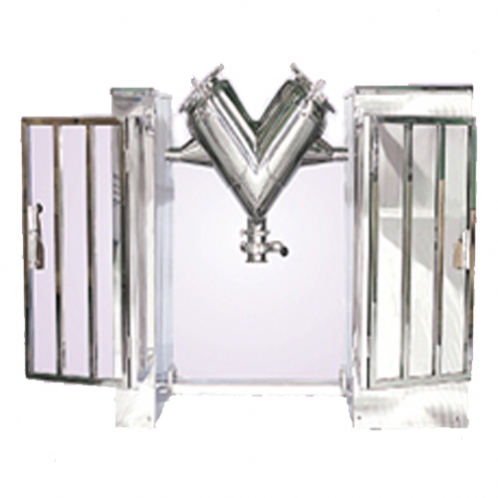

V Mixer

SOLID DOSE > Blenders

Principle

By making cylindrical vessel in V type and by application of driving device which can rotate vessel and mutually different particles are blended and aimed product is produced.

Application

It is applied for blending medicine, food and chemical products and ceramics.

Characteristics and strongpoint

- It is possible to maximize efficiency of blending of mutually different powder, and it has simple structure which makes cleaning inside with water.
- Disassembly, assembly and cleaning are simple by using sanitary butterfly valve for discharge valve.

Specification

MODEL	Working Capacity ( L )	Vasse Capacity ( L )	A	B	C	D	E	F	G	H	I	Vessel Speed (r.p.m)	Motor ( Kw )	Approx Weight ( Kg )
VM- 20	20	50	1,450	500	900	705	200	200	425	1,055	700	30	0.4	230
VM- 60	60	130	1,760	600	1,290	1,050	280	200	450	1,200	1,000	26	0.4	320
VM- 100	100	240	2,000	700	1,460	1,170	280	200	460	2,170	1,450	24	0.75	430
VM- 150	150	340	2,450	800	1,690	1,360	350	200	450	2,220	1,620	23	0.75	580
VM- 200	200	480	2,450	800	1,740	1,360	350	200	500	2,400	1,720	22	1.5	630
VM- 300	300	650	2,700	900	1,870	1,450	350	200	500	2,800	1,920	20	2.2	1,500
VM- 500	500	1,250	3,100	1,100	2,230	1,650	450	300	500	3,200	2,300	15	3.7	2,300
VM- 800	800	2,000	3,750	1,200	2,490	1,850	450	300	500	3,560	2,700	14	5.5	3,300
VM-1000	1,000	2,500	4,100	1,400	2,850	2,150	450	300	700	3,160	2,900	13	7.5	5,200
VM-1500	1,500	3,750	4,550	1,600	3,150	2,360	450	400	700	4,020	3,320	11	7.5	5,200
VM-2000	2,000	5,000	4,900	1,800	3,400	2,510	450	400	700	4,320	3,620	10	11	6,500

※As specification of your order, change for manufacturing of capacity
