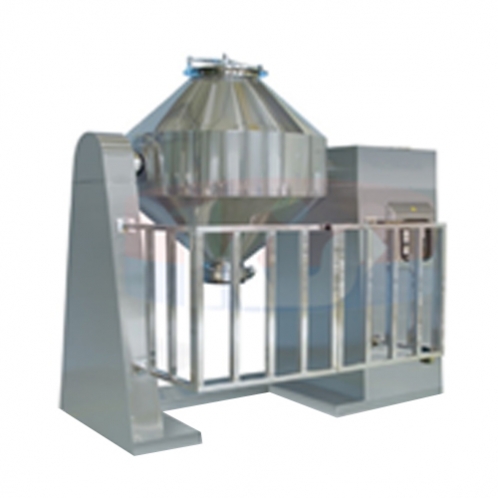

Double Cone Mixer

SOLID DOSE > Blenders

Principle

By making cylindrical vessel and cone type vessel and by application of driving device which can rotate vessel and mutually different particles(powder) are blended and aimed produced.

Application

It is applied for blending medicine, food and chemical products and ceramics.

View Video

Characteristics and strongpoint

- It is possible to maximize efficiency of blending of mutually different powder, and it has simple structure which makes cleaning inside with water.
- Disassembly , assembly and cleaning are simple by using sanitary butterfly valve for discharge valve.

Specification

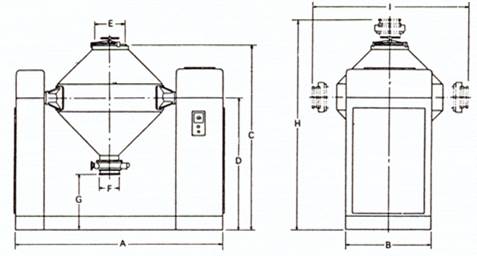

MODEL	Working Capacity ( L )	Vessel Capacity ( L )	A	B	C	D	E	F	G	H	I	Vessel Speed (r.p.m)	Motor (kw)	Approx Weight ( Kg )
WM- 60	60	136	1,760	600	1,340	1,050	280	200	450	1,550	1,000	31	0.4	310
WM- 100	100	200	1,760	600	1,410	1,050	280	200	500	1,640	1,180	29	0.75	360
WM- 200	200	440	2,000	700	1,630	1,170	350	200	550	1,890	1,440	26	1.5	600
WM- 300	300	650	2,100	900	1,850	1,300	350	200	600	2,100	1,620	24	1.5	1,400
WM- 800	800	1,750	3,150	1,400	2,430	1,640	450	300	650	2,780	2,280	16	3.7	3,200
WM-1000	1,000	2,200	3,400	1,500	2,790	1,930	450	300	700	3,160	2,460	15	5.5	3,700
WM-1500	1,500	3,320	3,850	1,600	3,110	2,100	450	400	700	3,550	2,800	14	7.5	5,100
WM-2000	2,000	4,440	4,420	1,800	3,350	2,220	450	400	700	3,750	3,060	13	11	6,300

※As specification of your order, change for manufacturing of capacity
