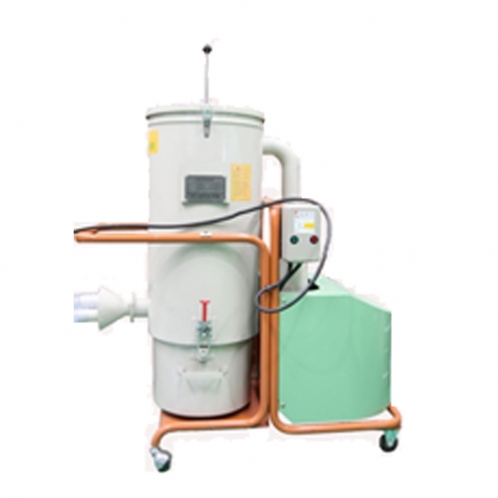

OVC-15B

SOLID DOSE > Option-DUST COLLECTOR

Dust Collector

Feature

The Dust collector, model OVC-15B,OVC-15BS, OVC-22B and OVC-37B has been designed to suck up shavings dust and it is mounted on casters in order to make the vacuum collector easy to handle.

“BS” Models means all STS 304L material construction.
The vacuumed material is subjected to a centrifugal action inside the tank where the coarser items fall owing to their weight, and the air passes though a filtering surface is discharged.

Specification

Model		OVC-15B	OVC-22B	OVC-37B
Power source		220/380/440, 60/50Hz, 3Phase
Motor HP(kW)		2HP(1.5kW)	2.2	5HP(3.7kW)
Max. Air Quantity(㎥/min±10%)		4.4(60Hz),3.5(50Hz)	5(60Hz), 4.1(50Hz)	6.5(60Hz),5.5(50Hz)
Max Pressure(mmAq±10%)		2,050(60Hz), 1,400 (50Hz)	2,250(60Hz),1600(50Hz)	2,800(60Hz),2,000(50Hz)
Filter	Area(㎡)	0.95(60Hz), 0.85(50Hz)	1.1(60Hz), 0.94(50Hz)	2.3(60Hz), 2.16(50Hz)
	Quantity(pcs)	6	6	1
	Material	Non-woven fabric	Non-woven fabric	P.E
	Size	ф100 x 450H	f 100 x 500mmH	ф300 x 400mmH
Dust box capacity		20 Liter	20 Liter	40 Liter
Suction Port (ø x m)		38 x 5	50 x 5	50 x 5
Dimension (W x D x Hmm)		450 x 1034 x 1149	450 x 1048 x 1235	706x1273x1277
Weight(kg)		90 kg	98 kg	160 kg
