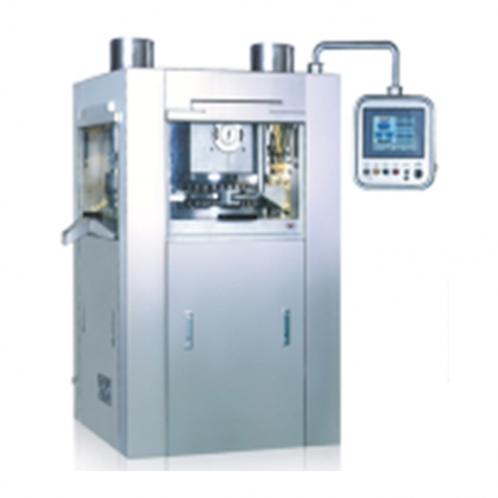

KP5 Series

SOLID DOSE > KP Series

Automatic Tablet Press

KP5 Series

KP5-Series tablet press designed to product a single layer and double layer tablet with high speed.
It’s designed based on GMP standard and easier operation & simple maintenance.
The machine could be expected high efficiency and increase high quality tablets productivity.
According to GMP standard, the compression area is paint-free and completely covered by stainless steel the compression zone.

The compression zone and upper punch cam could be assemble & disassemble without any tools.

Thus changeover time and cleaning time is very fast & convenient.

Feature

- Double sided press.
- 2 layer production.
- 41, 49, 59, 65 station.
- PLC control platform.
- According to GMP regulations.

PDF Download

Specification

Model No.		KP5-65	KP5-59	KP5-49	KP5-41
Number of station		65	59	49	41
Punch Type		EU 19			EU 1”
Punch Type		(IPT/TSM19)			(IPT/TSM 1”)
Tablet output/h max.	min.	156,000	141,600	117,600	98,400
Tablet output/h max.	max.	546,000	495,600	411,600	295,200
Revolution of disk	rpm	20~70	20~70	20~70	20~60
Max. pressure(ton)	ton	10	10	10	10
Max. tablet- Round	mm	11	13	16	25
Max. tablet thickness	mm	8.5	8.5	8.5	8.5
Max. filling depth	mm	18	18	18	18
Upper- punch penetration depth	mm	3~6	3~6	3~6	3~6
Pitch circle diameter	mm	Ø572
Die plate diameter	mm	Ø22	Ø24	Ø30.16	Ø38.10
Die plate height	mm	22.225	22.225	22.225	23.8
Punch shaft diameter	mm	Ø19	Ø19	Ø19	Ø25.35
Punch length	mm	136.6 (133.35)
Power of main motor	kw	11 kw
Net dimension	mm	1,140 mm x 1,200 mm x 2,075 mm (with hopper)
Without hopper	mm	1,140 mm x 1,200 mm x 1,840 mm
Net weight	kg	4,800 kg approximately
Power supply		220/380 V, 50/60 Hz, 3 P
