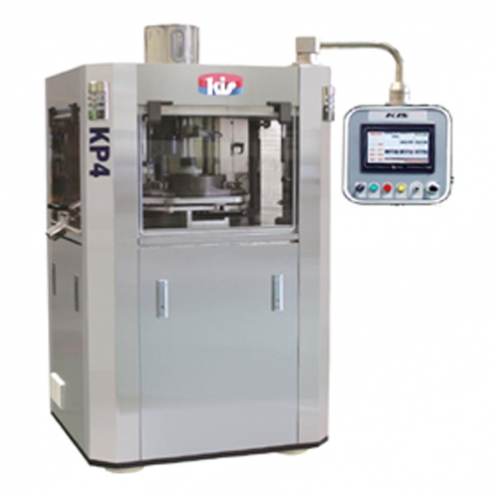

KP4 Series

SOLID DOSE > KP Series

Automatic Tablet Press

KP4 Series

KIS KP4-Series is a high-speed rotary tablet pres with having pre-pressure & main pressure station. It’s designed based on GMP standard and easier operation & simple maintenance.
The machine could be expected high efficiency and increase high quality tablets productivity.
According to GMP standard, the compression area is paint-free and completely covered by stainless steel the compression zone. The compression zone and upper punch cam could be assemble & disassemble without any tools.

Thus changeover time and cleaning time is very fast & convenient.

Feature

- High speed production capacity.
- 30, 36, 45, 48 station.
- PLC control platform.
- According to GMP regulations.
- Pre compression.
- Main compression

View Video

PDF Download

Specification

Model		KP4/30	KP4/36	KP4/45	KP4/48
Numbers of Station		30	36	45	48
Input Power(AC)		380V, 3Phase, 60/50Hz,
Punch Type		EU 1”	EU 19	EU 19	EU 19
		IPT/TSM 1"	IPT/TSM 19	IPT/TSM 19	IPT/TSM 19
		D	B	BB	BBS
Output/Hour	Min.	7,200	8,640	40,500	43,200
Output/Hour	Max.	135,000	216,000	270,000	288,000
Numbers of Rotation	rpm	4 ~ 75	4 ~ 100	15 ~ 100	15 ~ 100
Max. Tablet Diameter	Round	25	16	13	11
Max. Tablet Diameter	Shaped	25	19	14	18
Max. Tablet Thickness	mm	8.5	8.5	8.5	8.5
Max. Filling Depth	mm	18	18	18	18
Upper Punch Penetration	mm	1 ~ 6	1 ~ 6	1 ~ 6	1 ~ 6
Max. Pre-compression Force	Ton	3	2	2	2
Max. Main Compression Force	Ton	10	8	8	8
Pitch circle diameter	mm	420	420	420	420
Diameter of Die	mm	38.1	30.16	24	22
Height of Die	mm	23.8	22.22	22.22	22.22
Punch shaft Diameter	mm	25.4	19	19	19
Length of Punch	mm	133.6 (133.5)	133.6 (133.5)	133.6 (133.5)	133.6 (133.5)
Dimensions(including hopper)	mm	1,000(L)×1,225(W)×1,998(H)
Power consumption	kw	8	6	6	6
