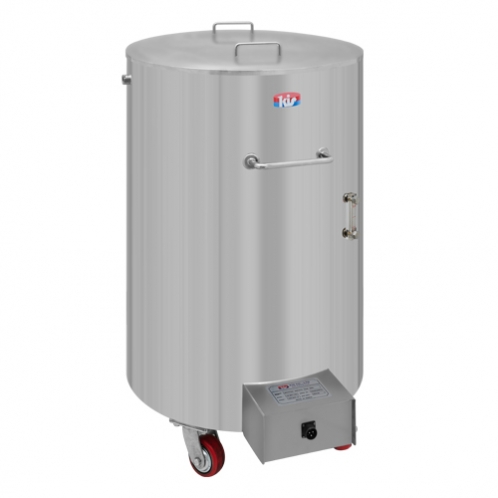

MEDICINE SERVICE “SUB-DIVIDE RECEIVER” TANK > Softgel Encapsulation Line - Mass Production

KIS-MST/Medicine service Sub-divide receiver tank 300L, 2 Fold

2 layer(inner tank and insulation layer),

PU foam for heat preservation;

Volume: 300L to lower flange

Material: Contact part: STS 316L, Others STS304

Heater : 3Kw

Input Voltage : AC220V, 1P, 50/60Hz

Fittings: air inlet/outlet(with valve), 2sets sight glass (1 with scrapper), casters, pressure gauge, safety valve, air regulator, discharge ball valve; liquid view on tank side; 4castors, 2 with brake.

Overall size: Φ815mm×1430 mm

Mirror polish inside, matte polish outside
