GELATIN MELTING MIXER WITH TANK > Softgel Encapsulation Line - Mass Production

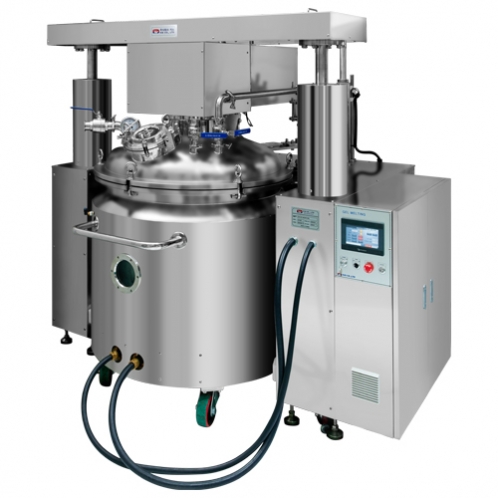

KIS-GMT/GEL MELTING MIXER 600L WITH TANK:

Applicable for both of Animal Gelatin & Vegetable Gel melting:

KIS-GMT/GEL MELTING MIXER LIFTING SYSTEM:

Equipped PLC & Touch screen control system

Consist of Control systems

- PLC MAIN, XBM-DN32S 1PC, LS KOREA

- Electrical equipment terminal block, XTB-40H, 1PC, LS KOREA

-7.4" TOUCH PANEL, MT807IP, EasyView

1.Hydraulic Lifting Type

2.Material: Contact part STS316L, Others STS304

3. Frame size: 950 x H900mm

3. Hydraulic pump: 2.2Kw

4. Vacuum pump: 5HP / 4Kw

5. Weight : 1,800Kg

GEL MELTING TANK 600L x 1tank.

Material: STS 316L or STS304 at customer selection

Heater: 15Kw x 2ea

Tank dimensions: 2,200mm(L) x 1,500mm(W) x 2,000(+1,100)mm(H)

Agitating motor power: 15HP 30:1/11Kw,

Heater: 15Kw x 2ea
