TUMBLING DRYERS SYSTEM
SOFT GELATIN > Softgel Encapsulation Line - Mass Production
Specifications

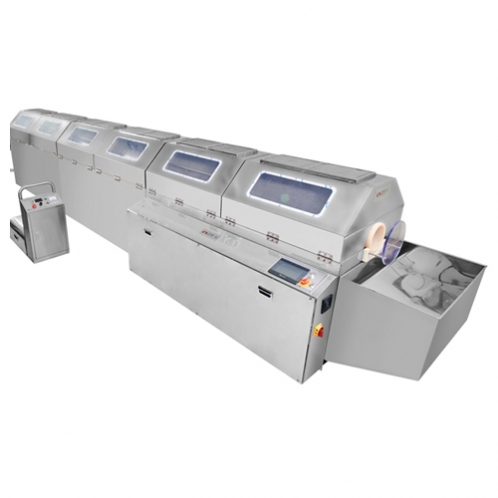

Tumbling Dryer with 6 baskets
(CE Certificate)
Equipped PLC & Touch screen control system
Consist of Control systems
- PLC MAIN, XBM-DN32S 1PC, LS KOREA
- PLC ANALOG, XBF-AD08A 3PCS, LS KOREA
- PLC OUTPUT, XBE-TN16A, 1PC, LS KOREA
-7.4" TOUCH PANEL, MT807IP, EasyView
Production rate: each basket control using the inverter.
Basket size/1pc: ø614mm x 921mmL
Dimenion: 800mmW x 6000mmL x 1287mmH
Weight: Approx. 3,900Kg
Total power consumption: Approx. 13.5Kw
Main motor: 0.75Kw x 6 motors 4.5Kw
Fan motor: 1.5Kw x 6 motors 9Kw
Voltage: 380V, 3 phases
Frequency:50 or 60Hz
