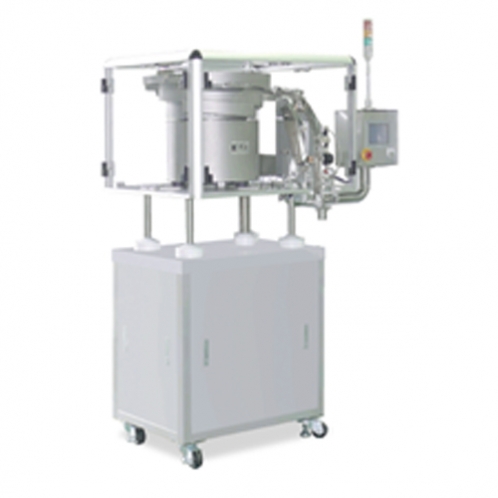

CSI-220 Canister Inserter(Standard)

Bottle packaging Counting Line > Desiccant Inserter

Inserting Machine

Feature

- The system for automatically cutting the roll-type pouch desiccant then inserting into bottle

- Meet cGMP requirements.
- I-MARK-free perfect cutting available thanks to sensing the pouch desiccant thickness.
- Pouch desiccant sensor.
- Sensing for feeding & remaining.
- Sensing for folding bottle.
- Easy operation with user-friendly touch screen.
- Visible cover provide safety operation.

PDF Download

Specification

Model	200	220	220-O
Type	Pouch desiccant cutting & filling	Bowl Feeder(Standard)	Bowl Feeder(Lift Type)
Machine speed	Max. 100pcs/min.	Max.120pcs/min.	Max.120pcs/min.
Machine speed	Max. 100pcs/min.	Working : 100pcs/min	Working : 100pcs/min
Control type	P.L.C & Touch screen
Silica-geltype	Roll type	Canister(Can type Silica-gel)
Silica-gelSize	Min(W) 18~35MM(L)~30~70mm	ø14~25MM(H)13~25mm/0.5g~3.8g
Container size	Bottle inner diameter is the biggest 5mm than Pouch desiccant width	Out diameter Φ25~Φ100, Height 50mm ~ 200mm	Out diameter Φ25~Φ100, Height 50mm ~ 200mm
Power Required	1 Phase 220V 50/60Hz, 1kw	1 Phase 220V 50/60Hz, 1kw(4.5A)
Compressed air	5~6kg/㎠ 20ℓ/min.	-	-
Machine size(mm)	760(W) x1,450(L) x1,800~2000(H)	800(W) x 930(L) x 1,650~1,800(H)	1,530(W) x 930(L) x 2,150(H
Machine weight	250kg	300kg	400kg
