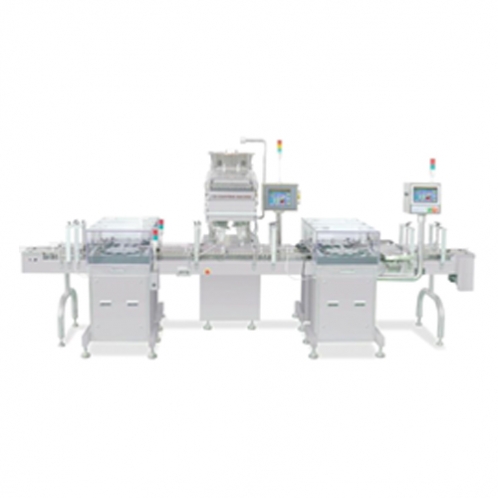

CSI-320-STARCHECK

Bottle packaging Counting Line > Weighing system

Weight Checkweighing Counter System

Feature

- Twin funnel based CSI series is the superior speed than single funnel based counter KIS series when performing less than 100 tablets per containers.(320)
- Single & twin lane sanitary conveyor available.
- Simple and quick change over as tool-free system.
- Superior counting accuracy with infrared beam sensor.
- Stainless steel covered structure with cGMP standard.
- User-friendly touch screen provide stable and easy operation.
- Stable sensor for bottle, tablet, air accompanied.
- Respective speed adjustable for three step vibrator.
- Pre-test for respective parts provide easy and simple setting.
- Sensor with sanitary hopper.
- Auto reject system for less or over counted bottle.
- Various bottle available.

Specification
Model 320 STARCHECK
Type Star check weight-Twin
Machine speed Max. 120pcs(60x2)/min
Working speed 80pcs(40x2)/min
Container size diameter : ø20~52mm
Feeding Method Servo Motor(STEP division)
Control type P.L.C & Touch screen
Power required 1 P, 220V 50/60Hz, 2kw
Compressed Air -
Detection sensor Force Balance precision
 Machine size(mm)  It may be changed according to the installation conditions
Machine Weight -
