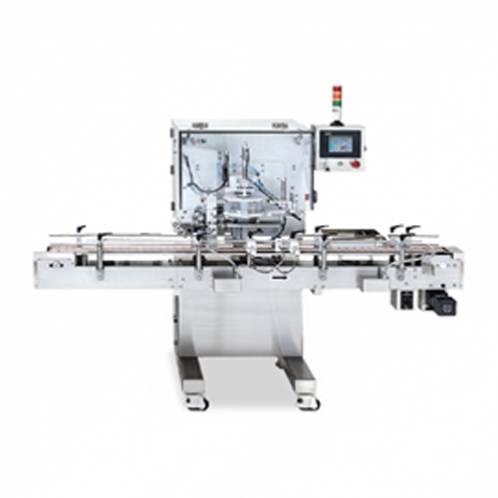

CSI-410

Bottle packaging Counting Line > Inserter

Cotton Inserter

Feature

- The system for automatically cutting the In-line type cotton then inserting into bottle

PDF Download
Specification
 Model 410
 Type Cotton cutting & filling
 Machine speed  Max. 60pcs/min.
 Control type P.L.C & Touch screen
 Container size Out diameter Φ25~Φ100,  Height 50mm ~ 200mm,  Inserting diameter ф25~ф50
 Power Required 1 Phase 220V 50/60Hz, 1.5kw
 Compressed air 5~6kg/㎠ 50ℓ/min.
 Machine size(mm) 950(W) x 1,490(L) x 1,720~1,920(H)
 Machine weight 350kg
