Bottle packaging Counting Line

Bottle packaging Counting Line

페이지 정보

본문

CSI-400

Bottle packaging Counting Line > Inserter

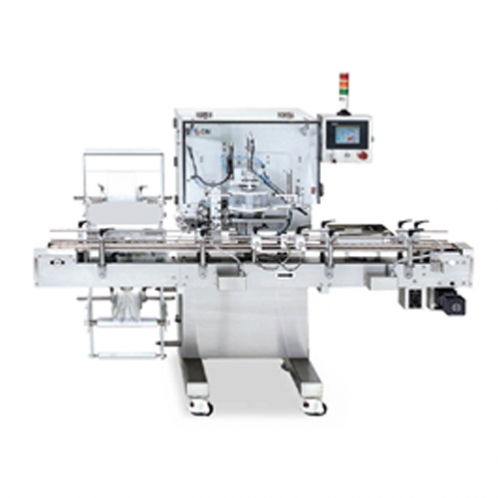

PE Film Inserter

Feature

- Meet cGMP requirements.
- Its possible to cutting & inserting the required length of PE film.
- Its available to insert the PE film 1~3 time per container. (Adjustable to inserting)
- Easy adjustable PE film inserting depth.
- Simple change over.
- No PE film no inserting
- Sensor for folding bottle.
- Easy operation with user-friendly touch screen.
- Visible cover provide safety operation.

Specification
 Model 400
 Type PE film cutting & filling
 Machine speed  Max. 60pcs/min.
 Control type P.L.C & Touch screen
 Container size Out diameter Φ25~Φ100,  Height 50mm ~ 200mm,  Inserting diameter ф25~ф50
 Power Required 1 Phase 220V 50/60Hz, 1.5kw
 Compressed air 5~6kg/㎠ 20ℓ/min.
 Machine size(mm) 950(W) x 1,490(L) x 1,720~1,920(H)
 Machine weight 350kg
