CSI-420

Bottle packaging Counting Line > Inserter

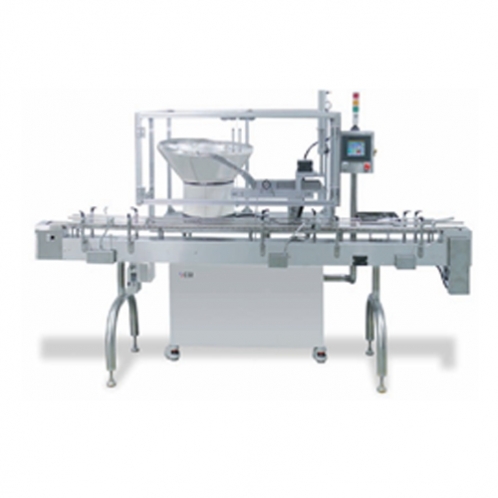

Sponge Inserter

Feature
- The machine that automatically arranges pieces of sponges and put it at the bottom of container.

PDF Download
Specification
 Model 420
 Type Sponge Inserter
 Machine speed  Max. 40pcs/min
 Control type P.L.C & Touch screen
 Container size Out diameter Φ25~Φ100,  Height 50mm ~ 200mm,  Inserting diameter ф25~ф50
 Power Required 1 Phase 220V 50/60Hz, 1kw
 Compressed air 5~6kg/㎠ 100ℓ/min.
 Machine size(mm) 1,250(W) x 2,690(L) x 1,700(H)
 Machine weight 300kg
