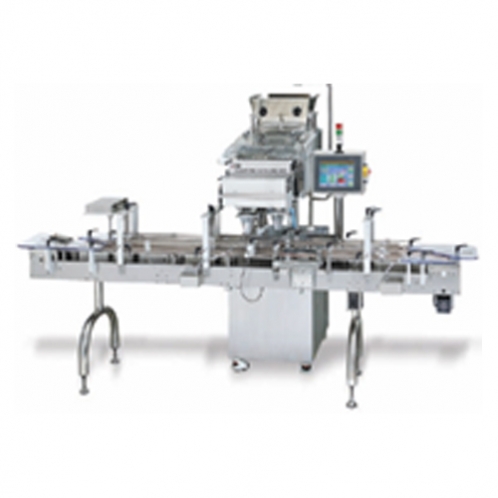

CSI-320 Less Packaging High Speed

Bottle packaging Counting Line > Mulit-channel counter

Tablets & Capsules Counting and Filling Machine

Feature

- Twin funnel based CSI series is the superior speed than single funnel based counter KIS series when performing less than 100 tablets per containers.(320)
- Single & twin lane sanitary conveyor available.
- Simple and quick change over as tool-free system.
- Superior counting accuracy with infrared beam sensor.
- Stainless steel covered structure with cGMP standard.
- User-friendly touch screen provide stable and easy operation.
- Stable sensor for bottle, tablet, air accompanied.
- Respective speed adjustable for three step vibrator.
- Pre-test for respective parts provide easy and simple setting.
- Sensor with sanitary hopper.
- Auto reject system for less or over counted bottle.
- Various bottle available.

Specification
Model 320 (Less PackagingHigh Speed)
Type 12 Channel(6x2 Chute)
Machine speed 100 Bottle/min(30T)
Working speed 90 Bottle/min
(Φ7 tablet 30T Filling)
Container size Output diameter : ø20~120mm
Height : 50~220mm
Bottle height : Up to 200mm
Feeding Method 3 step Vibration feeding type
Control type P.L.C & Touch screen
Power required 1 P, 220V 50/60Hz, 1kw
Compressed Air 5~6kg/㎠ 70ℓ/min
Detection sensor By infrared beam type
 Machine size(mm)  1,590(W)X 2,800(L)X 2,100(H)
Machine Weight 800kg
