CSI-540

Bottle packaging Counting Line > Capper

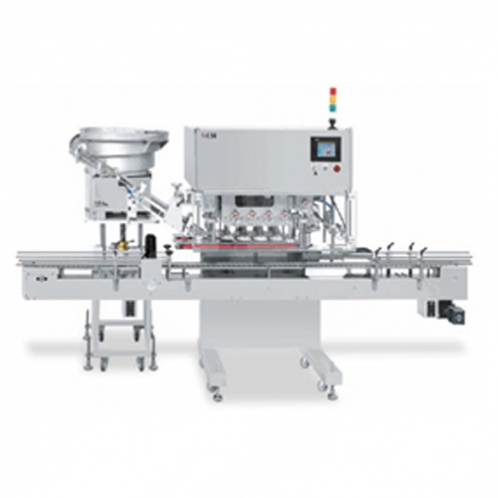

In-line Screw Capper

Feature

- The machine that feeds cap automatically and puts it on the container.






PDF Download
Specification
Model 540
Type  Screw capping & Press capping
Machine Speed  Max. 120bottle/min( Conveyer speed 0~30m/min)
Working Capacity -
Container Type -
Control Type P.L.C & Touch Screen
Cap Supply  Bowl vibration feeder(Standard), Cap elevator(Option)
Cap Size Ø20~Ø70 Height 15mm~25mm
Cap Type Screw Cap, Press Cap, Child Resistant Cap
Power Required 1Phase, 220V,50/60Hz, 1.5Kw
Compressed air 5~6kg/㎠ 10ℓ/min
Machine size(mm) 1150(W) X 3000(L) X 2070(H)
Machine weight 500kg
