CSI-620-1

Bottle packaging Counting Line > Labeller

Top & Labeller

Specification

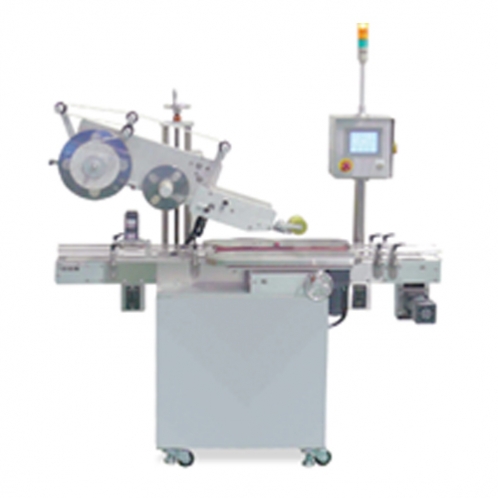

​Manual Sealer top surface-labeler

​

It can be used as a explanatory for mounting.



Type Manual Sealer top surface-labeling type
Speed Max. 30m/min(Conveyer speed)
Container Size Out dia. ø25mm~ø100mm, Height 50~200mm
Label Size Width : 20~120mm, Length : 50~300mm
Label type Sticker label & Roll label
Control Type P.L.C & Touch Screen
Power Required 1 Phase, 220V 50/60Hz, 1kw/4.5A
Dimension(mm) 670(W) x 1650(L) X 1750(H)
Weight 200kg
