SP-3300W

Labelling

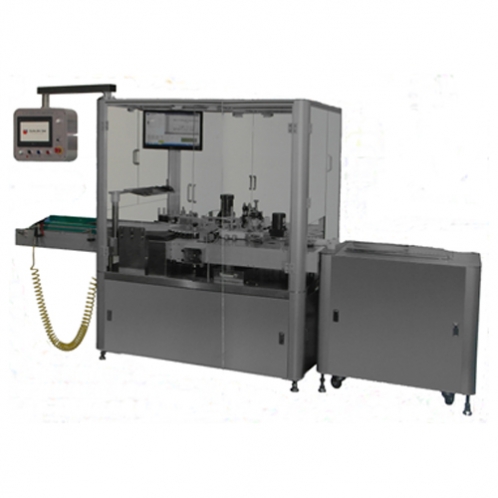

Vial & Ampoule Labeling Machine

Feature

Suitable for wrap around labeling of cylindrical vials and ampoules with index control.


- Precise label positioning.
- Careful handling for fragile and unstable containers, discharging in upright position.
- Servo Drive operation
- PLC and Touch Screen control.
- Auto-reject system for missing label detection(option).

- Thermal transfer, laser and inkjet printing(optional)
- Vision system for OCV/OCR/barcode(optional)






Specification
Product Coverage 1ml~5ml Vial. Ampoules
Capacity Max. 500BPM Depends on label and container size
Main Power 220VAC, 60/50Hz, 1P, 1.2Kw
Container diameter 12mm ~25mm
Min. label size 8mm(H) x 8mm(W)
Max. Label Size 70mm(H) x 150mm(W)
Min. height to bottom of label 1mm
Max. label reel diameter 308mm
Min. core diameter 75mm
Compressed air 60psi/4.2bar
Dimension Approx. 2500mm(L) x 1100mm(W) x 1750mm(H)
Noise emission <75db 1m(Subject to container type)
Net weight Approx. 500kg
