SILC-80
Cartoning

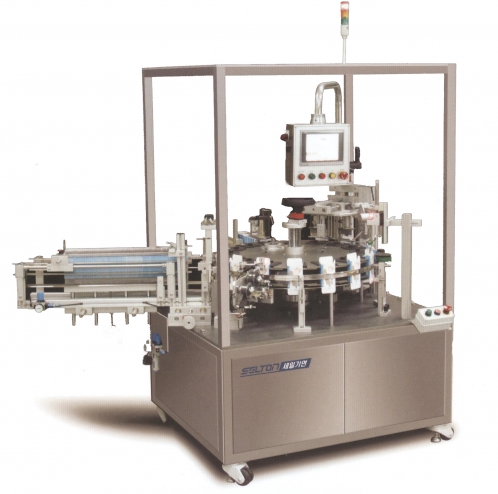

Rotary Cartoning Machine
Rotary Turn Table Operating Intermittent Motion
Vertical Cartoning Machine

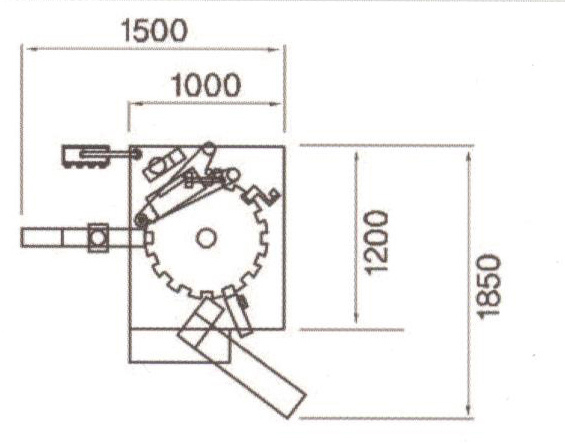

- Smallest foot print fir your limited packaging room.
- Easy operation through HMI touch screen.
- Product inserting by manual or automatic inserting system.
- Easy and fast carton size change over, within 15~20 minutes for 3 dimension change by
digital indicator and simple adjustment mechanism with no size part(normally) or minimum
parts.
- Pre-form by a pair pad and direct set to rotation mechanism.
- Last top and bottom pressing belts for sure complete cl sing with rejection of faulty carton
pack(option)
- No(or minimum) scratch on the carton surface.
- Robust construction by steel bar frame with cam, lever mechanism which also works for
silent operation with minimum vibration during operation.
- Easy access to mechanical section for maintenance.
Carton size range(mm) min ~ max
| A / 20~100(Standard) Special A1/100~250 A2 /15~50 B / 16 ~ 60(Standard) Special B1/80~250 B2 / 15~50 C / 60 ~ 150(Standard) Special C1/150~300 C2 / 40 ~120
|
Operation speed (Max. cycles/min) | Mechanical : 100 Running : 80 |
Electric power | 380V, 50/60Hz, 3Ph. |
Compressed Air | 6 bar |
