XENA-I ROTARY > Tablet presses

- Automatic control devices for filling of tableting depth.
- Measuring device for tableting & ejecting pressure of the tablets.
- Alarm and stop by interlocks as the door opened during operation.
- DAQ Program for data DP & storage.

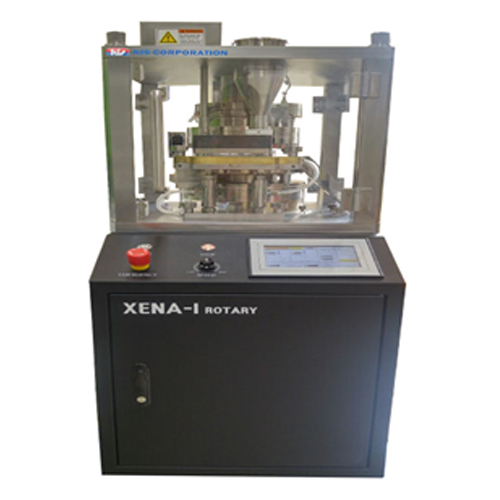

◆ XENA-I ROTARY

     - Station : 6~10
     - Type : EURO D, B, D&B
     - Max Pressure : 50KN(5Ton)
     - Max Diameter : 25mm
     - Max Filling Depth : 18mm
     - Feeder Speed : 0~50RPM
     - Output : 18,000 Tablets/Hour
     - Dimension : 1,150(H) x 500(W) x 725(D)mm
     - Power : 220V, 3Phase, 50/60Hz, 2KVA
     - Weight : 400kg

◆ XENA-I ROTARY ECONNOMIC

     - Station : 6~8
     - Max Pressure : 30KN(3 Ton)
     - Compaction & Filling Manual control
     - Output : 14,400 Tables/Hour
