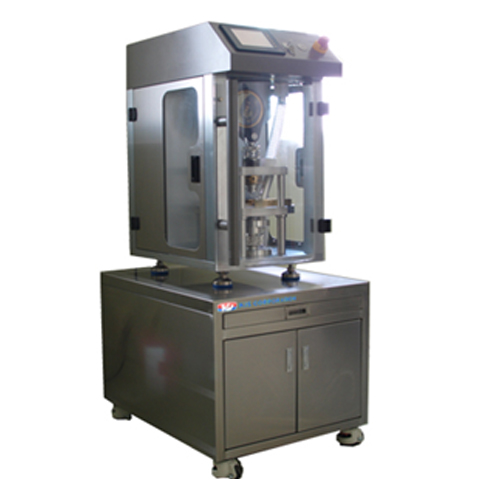

XENA-I > Tablet presses

- The XENA-I is driven a 0.75kw electric motor and 25w electric motor mounted the machine.
   The XENA-I is furnished with a high efficiency worm gear drive which is totally enclosed
   and works in an oil bath.

- An automatic pressure release offers positive protection against the use of excessive
   machine pressure. The overload pressure release is adapted to the lower punch is
   operated compression spring located at the bottom of the lower punch holder.
- For the operator safety, the machine has four safety sensor.

◆ XENA-I

    - Type : Single Tablet Press
    - Max Pressure : 50KN(5Ton)
    - Max Diameter : 23mm
    - Max Filling Depth : 20mm
    - Output : 2,000 Tablets/Hour
    - Dimension : 920(H) x 435(W) x 680(D)mm
    - Power : 220V, 1Phase, 50/60Hz, 1KVA
    - Weight : 300kg

◆ XENA-I PREMIUM

    - Compression force of the upper punch
    - Compression force of the lower punch
